The bottomtime manual

This manual is for divers using the bottomtime Mac app. You don’t need to know anything about programming to follow it. If you’d rather use the command line or Python, see Command line and Python.

bottomtime collects the dives from your Shearwater and your Garmin Descent and shows them together. When you wore both computers on the same dive, it lines the two logs up on one timeline, so you can see what each one said at the same moment. It keeps every value your computers recorded, including GF99, the deco ceiling, and @+5, which Shearwater’s own exports leave out. It can save all of it as spreadsheet files that you can open without bottomtime.

Contents

1. Installing bottomtime
2. Getting your dives in
3. After a dive trip
4. The dive list
5. Reading a dive
6. Saving your dives as files
7. Settings
8. Updating bottomtime
9. When something goes wrong
10. Your data and your privacy
11. Removing bottomtime
12. Terms

Installing bottomtime

bottomtime runs on macOS 11 Big Sur or newer. There are two downloads, one for each kind of Mac. To see which you have, open the Apple menu and choose About This Mac. If the line that says Chip starts with “Apple M”, you have an Apple silicon Mac. If there’s a line that says Processor and it names Intel, you have an Intel Mac.

1. Download bottomtime-mac.zip for an Apple silicon Mac, or bottomtime-mac-intel.zip for an Intel Mac.
2. Double-click the zip file to unzip it, and drag bottomtime into your Applications folder.
3. Open bottomtime from Applications. macOS will say that it can’t verify bottomtime, and offer to move it to the Trash. Click Done, or Cancel on older versions of macOS. This happens because bottomtime is made by one diver and isn’t registered with Apple, which costs money every year.
4. Open System Settings, click Privacy & Security, and scroll down to the Security section. You’ll see a line saying bottomtime was blocked. Click Open Anyway, and enter your Mac’s password if it asks.
5. Open bottomtime again. From now on it opens normally.

Everything bottomtime needs is inside the app. You don’t have to install Python or anything else.

Getting your dives in

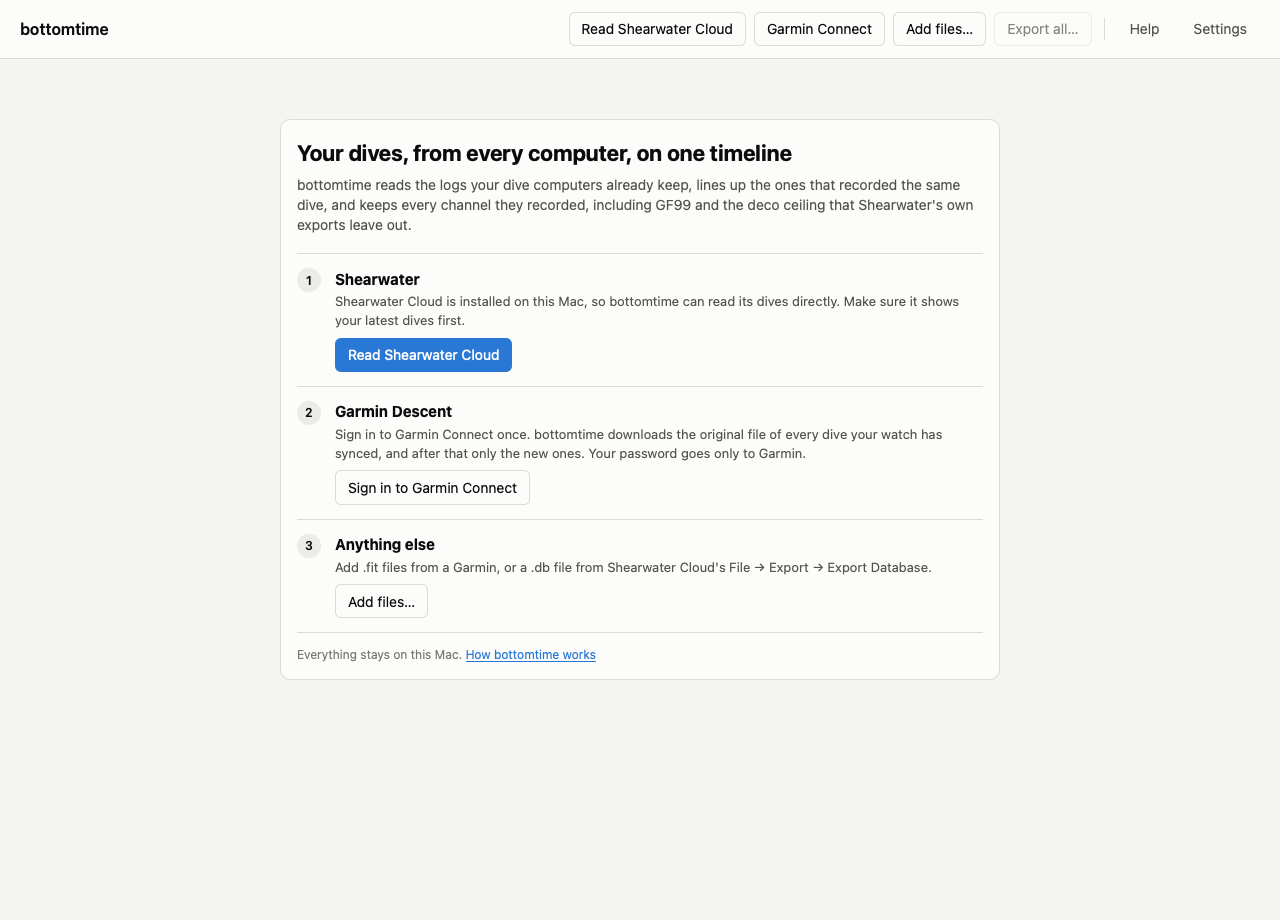

The first time you open bottomtime, it shows three ways to add dives. You can use any of them, in any order, and as often as you like. bottomtime recognises dives it already has, so reading the same dives twice does no harm.

Shearwater

bottomtime reads the dives that Shearwater Cloud’s desktop app keeps on your Mac, so there’s nothing to export.

1. Open Shearwater Cloud and download your dives from your computer the way you normally do. Check that it shows your latest dive.
2. In bottomtime, click Read Shearwater Cloud.

If the button is greyed out, Shearwater Cloud’s desktop app isn’t installed on this Mac. You can install it from Shearwater’s website, or, if Shearwater Cloud is on another computer, use its File menu, choose Export, then Export Database, copy the .db file it saves to this Mac, and add it with Add files….

Garmin Descent

bottomtime downloads your dives from your Garmin Connect account.

1. Sync your watch with the Garmin Connect app on your phone, as you normally do.
2. In bottomtime, click Garmin Connect, then enter the email and password you use for Garmin Connect.
3. If your account has two-step verification turned on, Garmin sends you a code. Type it into bottomtime and click Continue.

bottomtime then downloads the original file of every dive your watch has synced. The first download takes a little over a second per dive, so a few hundred dives take a few minutes. After that, the button reads Download Garmin dives and only fetches dives bottomtime doesn’t have yet.

Your password goes only to Garmin. bottomtime keeps the sign-in that Garmin gives back, the same way Garmin’s own apps do, so you don’t have to sign in every time.

Garmin Connect also keeps copies of dives from other brands’ computers if you ever imported them with Garmin’s dive log import tool. bottomtime skips those copies and reads those computers directly instead.

Files

Add files… takes .fit files from a Garmin computer and .db files exported from Shearwater Cloud. You can pick several files at once.

After a dive trip

1. Download your dives to Shearwater Cloud and sync your Garmin with Garmin Connect, as you normally would.
2. Open bottomtime.

With the default settings, that’s all. Each time bottomtime opens, it reads Shearwater Cloud and checks Garmin Connect for new dives on its own. You can also click Read Shearwater Cloud or Download Garmin dives yourself at any time.

The dive list

Every dive is one row. When you wore two computers on the same dive, it’s still one row, and the Computers column names both. The count at the top left counts dives and the different computers they came from.

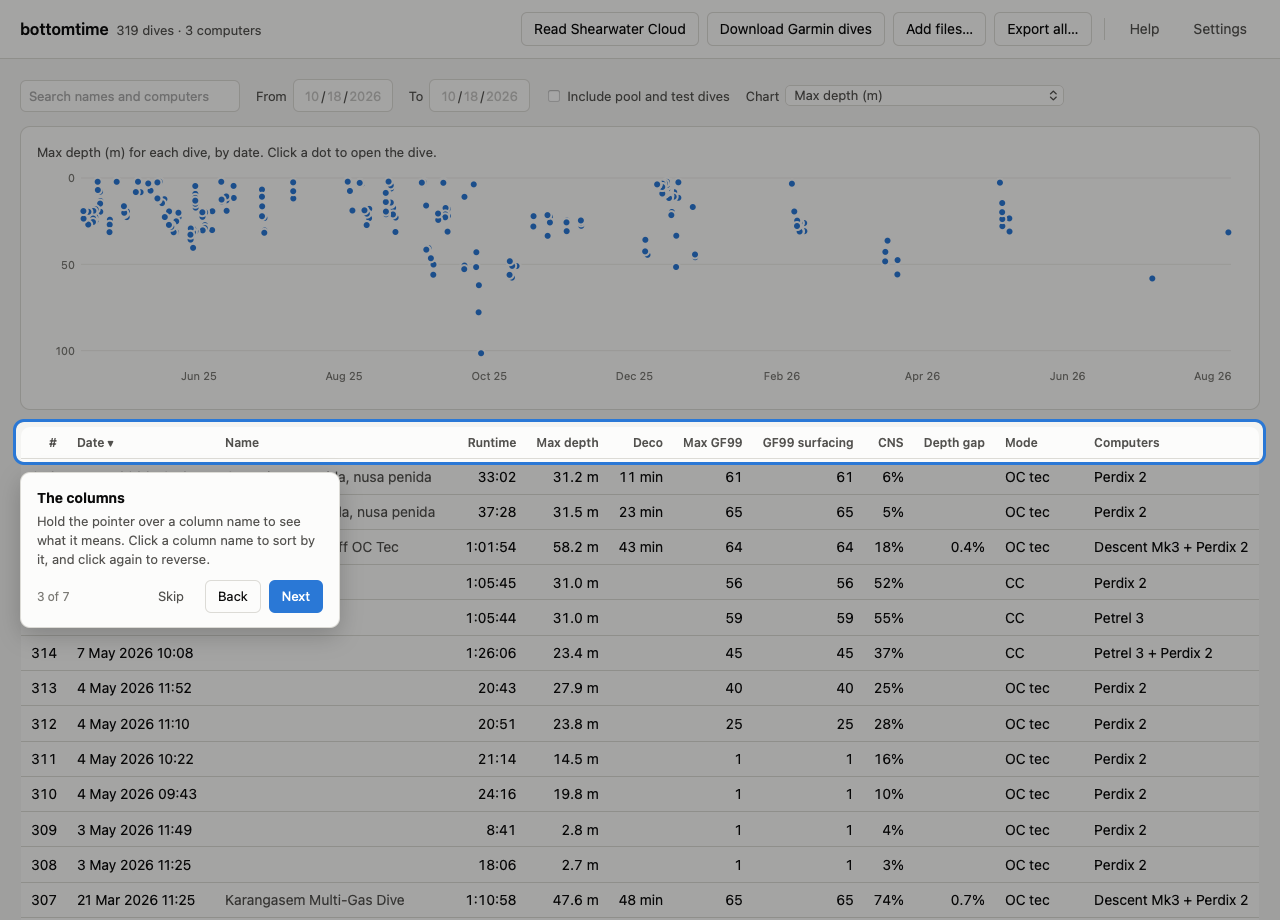

The first time the list appears, bottomtime gives you a short tour of it. You can see the tour again at any time from Help, with Show me around.

The columns

Hold the pointer over a column name to see what it means. Click a column name to sort by it, and click it again to reverse the order.

Finding dives

The search box finds dives by site name, computer model, or dive number. The From and To dates narrow the list to a period, such as one trip.

Dives shorter than 2 minutes or shallower than 2 m are treated as pool or test dives. They’re hidden unless you tick Include pool and test dives.

The chart above the list

The chart puts a dot for every dive in the list, by date. Choose what it shows with the Chart menu: max depth, GF99 at surfacing, max GF99, runtime, time in deco, CNS, the depth gap between computers, or the difference in their deco time. Hold the pointer over a dot to see which dive it is, and click it to open that dive. The chart follows the search and the dates, so you can compare the dives of a single trip.

Reading a dive

Click a row in the list, or a dot on the chart, to open a dive.

At the top is one card for each computer that logged the dive. It shows the computer’s serial number, the time the dive started by that computer’s own clock, the runtime and max depth that computer recorded, its mode, and the gases it had set up, written as oxygen/helium (21/0 is air, 50/0 is EAN50).

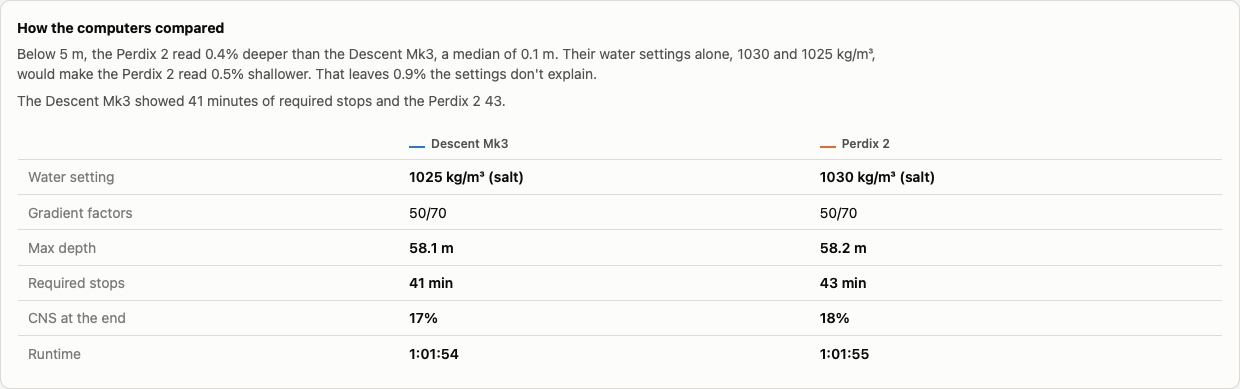

How the computers compared

When two computers logged the dive, a box under the cards compares them.

The first sentence says how far apart the two computers’ depths were, using every pair of readings taken deeper than 5 m within a second and a half of each other. It gives the median difference as a percentage and in metres.

The next sentence says how much of that the computers’ water density settings explain. A dive computer measures pressure and works out depth from it, so it needs to know how heavy the water is. A computer set to lighter water reads deeper. Fresh water (1000 kg/m³) reads 2% deeper than EN13319 (1020). Shearwater and Garmin also mean different things by “salt”: 1030 kg/m³ on a Shearwater and 1025 on a Garmin. Whatever the settings don’t explain comes from the computers themselves, or from where each was worn, since two computers on different arms can sit at different depths. On a shallow dive, a fixed difference like that is a large percentage, which is why the sentence gives metres too.

When the computers showed different amounts of required stops, a sentence says so, and points out when they were set to different gradient factors.

The table puts the two computers side by side: water setting, gradient factors, max depth, minutes of required stops, CNS at the end of the dive, and runtime. Values that differ are in bold.

The charts

Below the cards are up to three charts on the same timeline:

• Depth. Each computer has its own colour. The solid line is depth, and the dashed line in the same colour is the deco ceiling the Shearwater calculated.
• GF99. Only Shearwater computers record it.
• ppO2. The partial pressure of oxygen each computer reported.

Hold the pointer over the charts and a line follows it through all three charts, with a box listing what every computer showed at that moment: depth, ceiling, ppO2, temperature, next stop, time to surface, @+5, NDL, and CNS, whichever that computer recorded. You can also click the charts and use the left and right arrow keys to move through the dive in 10-second steps, or hold Shift for one-minute steps.

When two computers logged the dive, the line under the charts says how they were lined up. No two dive computers’ clocks agree. bottomtime starts from each computer’s own clock, then slides one depth profile along the other until they match best. “+190 s left over” means bottomtime had to slide one profile 190 seconds further than the two clocks said, once the time zone was accounted for. “Profile match 0.999” says how closely the two depth profiles agree, where 1 would be identical. Neither log is changed. Every reading is shown at the time its computer recorded it.

The first time you open a dive, bottomtime gives you a short tour of this page too.

Click ← All dives, or press Esc, to go back to the list.

Saving your dives as files

bottomtime can save your dives as CSV files, which open in Excel, Numbers, or Google Sheets. The files are yours and stay readable without bottomtime, Shearwater Cloud, or Garmin Connect.

Export this dive (CSV), on a dive’s page, saves one file with every reading from every computer on that dive. Each row is one reading from one computer. The dive_time_s column puts every computer on the same timeline, in seconds from the start of the dive, so you can sort or chart them together.

Export all…, at the top of the window, saves a zip file. Inside are dives.csv, with one row per dive and the same columns as the dive list, and a dives folder with one file per dive.

Values in exported files are always metric. Most column names end in their unit, such as depth_m for metres, temp_c for °C, and tts_s for seconds. Garmin and Shearwater record different things, so each computer fills in its own columns and leaves the others empty.

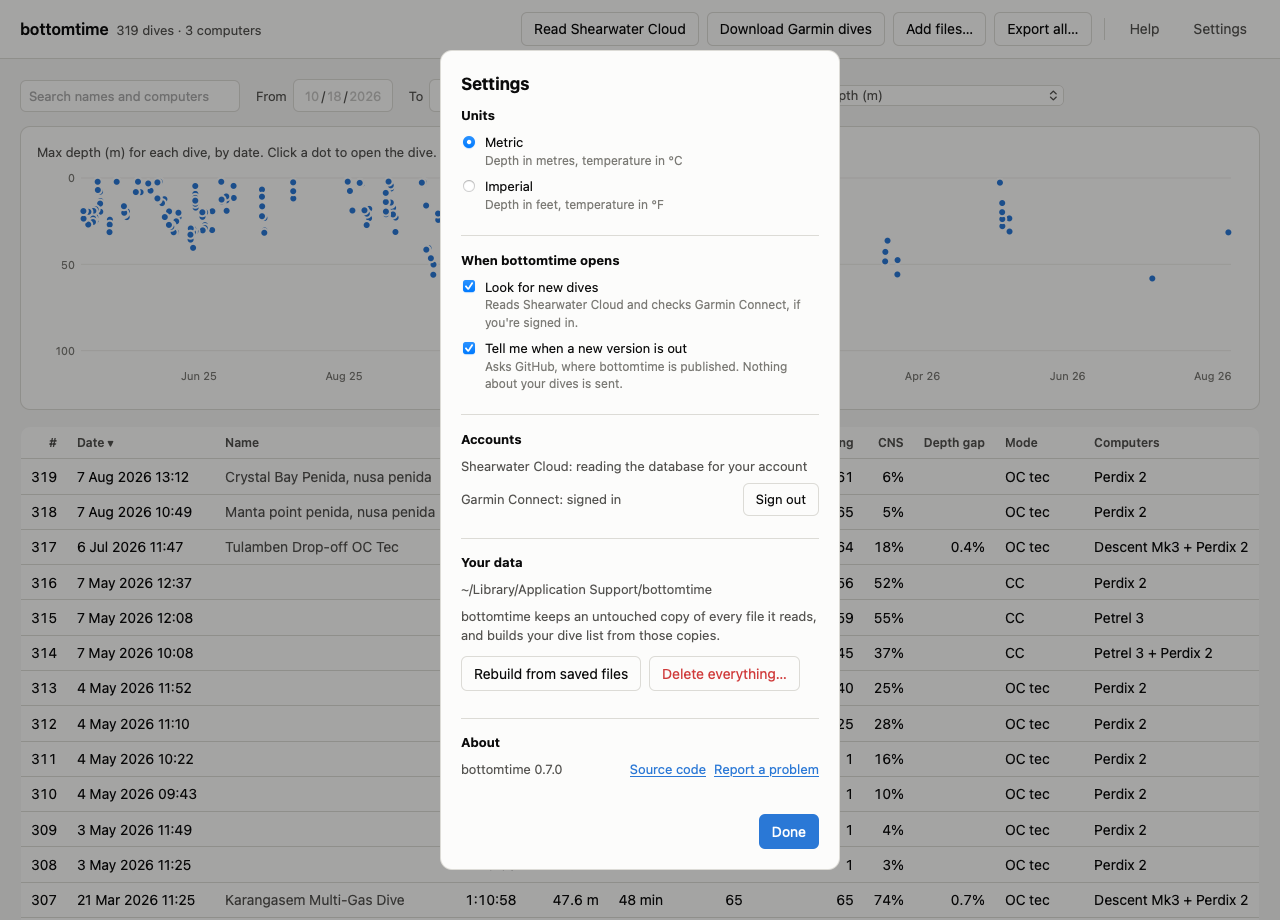

Settings

Units switches depth between metres and feet and temperature between °C and °F everywhere in the app. Exported files stay metric.

Look for new dives makes bottomtime read Shearwater Cloud and check Garmin Connect each time it opens. It only starts once you’ve added dives yourself, so bottomtime never reads Shearwater Cloud before you’ve asked it to.

Tell me when a new version is out asks GitHub, where bottomtime is published, whether there’s a newer version. Nothing about your dives is sent.

Accounts shows which Shearwater Cloud account bottomtime reads, and lets you sign in to or out of Garmin Connect.

Your data shows the folder where bottomtime keeps everything, with a button to open it in Finder.

• Rebuild from saved files throws away the dive list and builds it again from the files bottomtime saved. Nothing is downloaded. Use it if something looks wrong after an update.
• Delete everything… deletes every dive and saved file in bottomtime, signs out of Garmin Connect, and resets the settings. It asks you to confirm first. Your dives in Shearwater Cloud and Garmin Connect aren’t touched, so you can read them again.

About shows which version you have, with links to the source code and to report a problem.

Updating bottomtime

When a new version is out, a line at the top of the window says so. Click Download it, then replace the bottomtime in your Applications folder with the new one, the same way you installed it. macOS may ask you to allow it in Privacy & Security again.

The first time a new version opens, it may say “Updating your dives for this version of bottomtime” while it rebuilds your dive list from the files it saved. This takes a minute or so and downloads nothing.

When something goes wrong

When something fails, a line at the top of the window says what happened. Click Details to see the technical message, and Report a problem to open a page on GitHub with that message filled in, where you can describe what you were doing. You’ll need a free GitHub account to send it.

The messages you’re most likely to see:

“Shearwater Cloud’s desktop app wasn’t found on this Mac.” bottomtime looks for Shearwater Cloud’s dives in the folder Shearwater Cloud’s Mac app keeps them in, and found none. Install Shearwater Cloud, or export a database from it on another computer and use Add files….

“…couldn’t read a database. If Shearwater Cloud is syncing, wait for it to finish and try again.” Shearwater Cloud was busy writing to its database. Wait until it has finished syncing and click Read Shearwater Cloud again.

“Check the email and password, then try again.” Garmin didn’t accept the sign-in. Use the email and password you use at connect.garmin.com.

“Garmin is limiting sign-ins right now.” Garmin blocks sign-ins for a while after several attempts in a row. Wait a few minutes.

“Garmin didn’t accept the saved sign-in. Click Garmin Connect and sign in again.” Garmin’s sign-in expires now and then, or ends when you change your password. bottomtime has signed you out, so click Garmin Connect and sign in again.

“…needs Garmin Connect, and bottomtime couldn’t reach it.” Check your internet connection. If it works and the message keeps coming back, Garmin may have changed something on their side. bottomtime signs in to Garmin Connect the way Garmin’s own apps do, without an official arrangement with Garmin, so a change at Garmin can stop it working until bottomtime is updated. Adding .fit files with Add files… still works when that happens. Report a problem so it gets fixed.

“bottomtime couldn’t read that file.” bottomtime reads .fit files from Garmin computers and .db files exported from Shearwater Cloud. Other files, such as Shearwater’s XML or CSV exports, can’t be added.

“3 of 40 files couldn’t be read. The others were added.” Most files went in. The ones that didn’t were either damaged or not dive logs that bottomtime reads.

The dive list looks wrong after an update. Open Settings and click Rebuild from saved files.

macOS says bottomtime can’t be opened. Follow steps 3 to 5 of Installing bottomtime.

Your data and your privacy

Everything bottomtime has stays on your Mac, in the folder ~/Library/Application Support/bottomtime. That folder holds:

• dives.db, your dive list.
• archive, an untouched copy of every file bottomtime has read: each original Garmin file and each copy of Shearwater Cloud’s database. Your dive list is built from these, which is why it can always be rebuilt.
• garmin, your Garmin Connect sign-in, if you signed in.
• settings.json, your settings.

bottomtime sends nothing about your dives anywhere. It contacts Garmin Connect only to download your dives, and GitHub only to check for a new version, which you can turn off in Settings.

Removing bottomtime

To remove bottomtime and everything it saved, open Settings, click Delete everything… and confirm, then drag bottomtime from Applications to the Trash. Your dives in Shearwater Cloud and Garmin Connect stay where they are.
